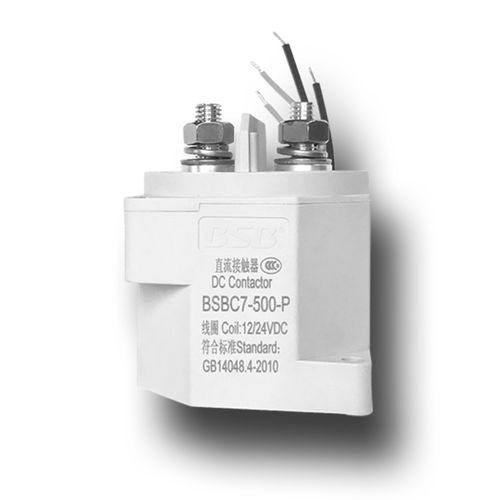

DC contactor BSBC7 Seriessafetyvacuumhigh-voltage
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Technology
- vacuum
- Electrical characteristics
- DC, high-voltage
- Applications
- for electric vehicles, for hybrid vehicles, for photovoltaic applications
- Other characteristics
- auxiliary
- Primary current
Min.: 1 A
Max.: 500 A
- Load voltage
Min.: 12 V
Max.: 1,000 V
Description
Strong control load capacity: rated operational voltage 12VDC~1000VDC, rated operational current 500A.
Safe: Full sealed with epoxy resin, contact and coil will not be oxidized, product performance is not affected by external environment, no arc outbursts, can be worked in explosive and harmful environment.
Reliable: Adopt DC high voltage non-polarity design, the breaking capacity is higher and more reliable, convenient and reliable installation/wiring.
Energy conservation: Using PWM control technology, effectively control the coil power and action characteristics, more energy saving.
ROHS: All components meet the latest ROHS requirement.
Description
- Rated current: 500A
- Rated voltage: 12-1000VDC
- Min. load: 1A 12VDC
- Main contact type: 1SH(SPST NO DM)
- Main contact mounting: M8 external thread
- Resistance to vibration: 10-2000Hz, 20G
- Operating ambient Temperature: -40℃~+85℃
