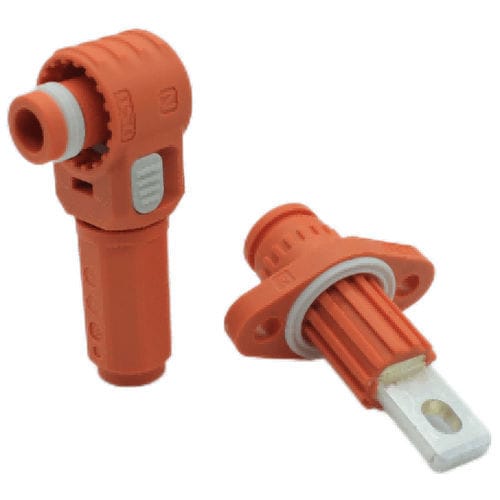

Energy storage connector E36 Series
electrical power supplyright-anglesocket

energy storage connector
energy storage connector
energy storage connector
energy storage connector
energy storage connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Shape
right-angle
Connection type
socket, crimp, screw
Size
M5
Electrical characteristics
DC, high-current
Product applications
plug, cable, for battery, energy storage, for electric vehicles, air conditioner, for photovoltaïc installations
Domain
industrial, power distribution
Other characteristics
panel-mount
Primary current

55 A, 70 A

Voltage

1,500 V

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Rated current: 1500V Rated current: ≤70A Wire cross-section: 5mm² – 8.5mm² Spatial orientation: angled 90° Connector types: Residential Energy Storage Connectors | Photovoltaic Connectors | Electric Vehicle Connectors | Industrial Connectors Features and Benefits • 360° Rotation: Can be inserted at any angle, and the wire can rotate freely after insertion • Anti-Misplug: The positive and negative poles have structural anti-mistake features providing reverse polarity protection and color-coded visual anti-mistake features for battery connections • Safe Installation: Ensures electric shock protection for the battery module even when not inserted Applications • Residential Battery Energy Storage Systems • Photovoltaic Systems • Electric Vehicles • Air condicitioners • Power distribution equipments
