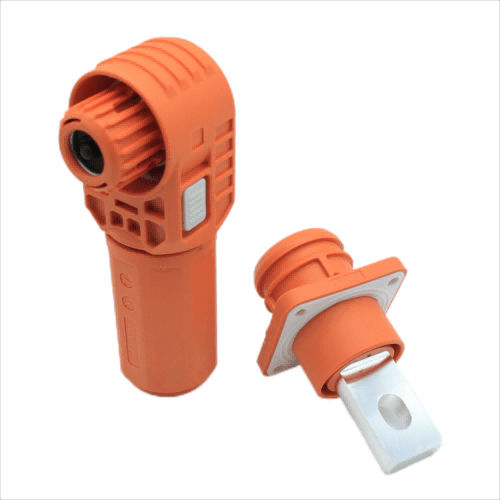

Energy storage connector E120 Serieselectrical power supplystraightright-angle
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- straight, right-angle
- Connection type
- socket, crimp, through-hole, screw
- Size
- M8
- Electrical characteristics
- DC, high-current
- Product applications
- plug, for battery, energy storage, for electric vehicles, air conditioner, for photovoltaïc installations
- Domain
- industrial, power distribution
- Other characteristics
- panel-mount
- Primary current
250 A, 300 A, 350 A
- Voltage
1,500 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
• Wire cross-section: 65mm² – 120mm²
• Spatial orientation: angled 90°
• Connector types: Energy Storage Connectors | Photovoltaic Connectors | Electric Vehicle Connectors | Industrial Connectors
Features and Benefits
• 360° Rotation: Can be inserted at any angle, and the wire can rotate freely after insertion
• Anti-Misplug: The positive and negative poles have structural anti-mistake features providing reverse polarity protection and color-coded visual anti-mistake features for battery connections
• Safe Installation: Ensures electric shock protection for the battery module even when not inserted
Applications
• Energy Storage Systems
• Photovoltaic Systems
• Electric Vehicles
• Air condicitioners
• Power distribution equipments
