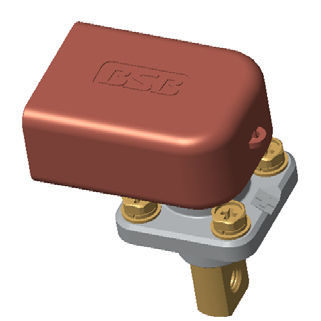

Through-hole connector BSB A Serieselectrical power supplyfemalemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- female, male, through-hole
- Electrical characteristics
- DC, high-voltage
- Material
- plastic, copper, tin
- Product applications
- plug, terminal, vacuum, socket, for electrical cabinets
- Protection class
- IP67
- Other characteristics
- waterproof
- Primary current
250 A
- Voltage
1,500 V
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Energy Storage Connector
Appliance
Battery Energy Storage System, Distribution Box
Specificities
Max 1500VDC continuous current Max 250A
Connectors are easy to insert and close, and can realize blind insertion
Positive and negative terminals have key structure error-proof function and color visual error-proof function insulation protection.
Working temperature: -40℃～125℃
Relative humidity: At 25℃,5%～95％
Storage temperature: -5℃～30℃
Salt spray level: 48h
Dielectric strength: 5000V AC (50Hz, RMS) withstand voltage for 1min, no breakdown, flashover or flashover phenomenon, leakage current ≤5mA.
