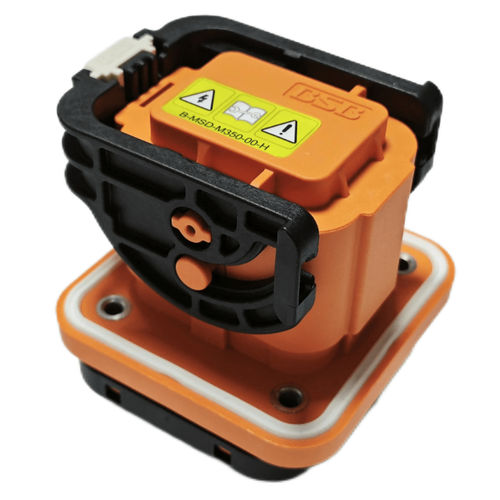

Electrical power supply connector BSB MSD SeriesfemalemaleDC
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- female, male
- Electrical characteristics
- DC, high-voltage
- Material
- plastic
- Product applications
- plug, energy storage, socket, for electrical cabinets
- Protection class
- IP67
- Other characteristics
- waterproof
- Primary current
Max.: 350 A
- Voltage
Min.: 1 V
Max.: 1,500 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Energy Storage Connector
Appliance
Battery Energy Storage System, Distribution Box
Specificities
Max 1500VDC continuous current Max 350A
Connectors are easy to insert and close, and can realize blind insertion
Positive and negative terminals have key structure error-proof function and color visual error-proof function insulation protection.
Working temperature: -40℃～125℃
Relative humidity: At 25℃,5%～95％
Storage temperature: -5℃～30℃
Salt spray level: 480h
Dielectric strength: 5000V AC (50Hz, RMS) withstand voltage for 1min, no breakdown, flashover or flashover phenomenon, leakage current ≤5mA.
Protection level: Before inserting: the plug and socket meet the IP20 requirement. After inserting the IPXXB requirement, the connector meets the IP67 requirement.
