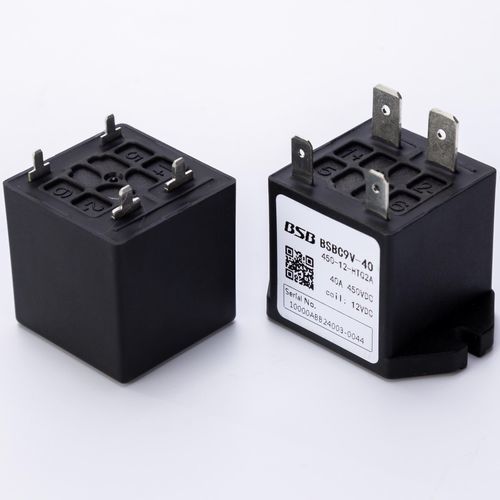

Pre-charge contactor BSBC9-20electromagneticDCSPST-NO
Add to favorites
Compare this product
Characteristics
- Function
- pre-charge
- Technology
- electromagnetic
- Electrical characteristics
- DC
- Contact configuration
- SPST-NO
- Applications
- industrial, for photovoltaic applications, for hybrid vehicles, for the automotive industry, for heavy-duty applications, battery, for military applications, for construction machinery
- Other characteristics
- auxiliary, compact
- Primary current
20 A
- Load voltage
450 V, 750 V
Description
BSB‘s C9 series is a compact high-capacity DC switching automotive relay, utilizing SPST (1FormA) contact arrangement. The switching capacity of the BSBC9-20 is 20A, with ratings available up to 40A. Sealed and flux-resistant structural types offer installation options with either PCB or plug-in terminals. The C9 series offers an option with built-in resistors to protect the coil from electromagnetic interference and features extreme heat resistance. Standard part numbers are available with 12V and 24V coil voltages, with 48V and 60V coil voltages also available. The main contacts are also suitable for 450V and 750V circuits (for pre-charge relay).
Features and Benefits
• Designed and manufactured according to IATF16949 automotive quality system certification
• Compact and High Capacity
• Polarity option on the load and no polarity on coil
Applications
• Automobiles
• Pre-charging
• Energy storage system
• Solar System
• Construction Equipment
• AGV System
• Heavy-duty truck
• Power control
• UPS system
• Military equipment
