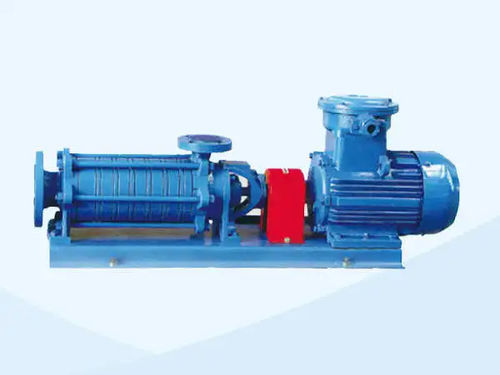

Multi-stage pump DB-65

centrifugaloilfor LPG

DB-65 multistage pump is a centrifugal pump, which adopts horizontal structure of 6 classes. And the shaft adopts mechanical seal without cooling. The pump is used for transferring LPG, especially it is high differential pressure, low NPSH and the gas of LPG up to 50% when pumping LPG from underground tank. The suction end of the pump adopts precompression turbine, which makes it better in use under the requirement of low NPSH. So this pump can work under the condition of bad suction. Application LPG tank filling Pumping LPG from underground storage Bulk filling operations Loading/unloading of oil tank trucks Vapor recuperation Technical Specification • direction of rotation : anti-clockwise facing the end of of the • pump drive shaft. • Max. pressure : 40bars at 120℃ • speed : 1450rpm • power : 380V,50Hz,4KW • ambient temperature : 20℃-+60℃ • class : 6 • connecting flanges : DIN2501,PN40 • bearings : slip bearing at the pump end、ball bearing at the drive end • lubrication : The slip bearing at the pump end lubricated by the pump liquid drive the ball bearing to self lubricate.
