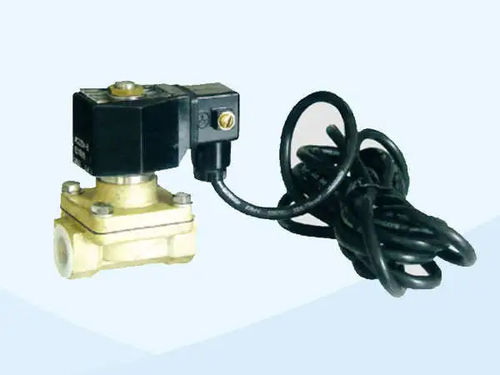

LPG solenoid valve direct-operated2-waythreaded
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Medium
- for LPG
- Body
- threaded
- Other characteristics
- anti-corrosion, diaphragm
- DN
20 mm
(0.787 in)- Voltage
220 V
- Temperature
Max.: 65 °C
(149 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 1.6 MPa
Min.: 0 MPa
Description
Advanced craft and reliable action;
Diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -20℃
Coil parts adopt imported enamelled wires in F class with excellent insulation
Anti-explosion Class：Exd Ⅱ BT
Technical Specification
• Diameter : 20mm/(3/4)”
• Connection : Thread
• Flow Rate : 5-50L/min
• Working Pressure : 0-1.6MPa
• Voltage : AC220v 50HZ
• Ambient Temperature : -20℃ -65℃
