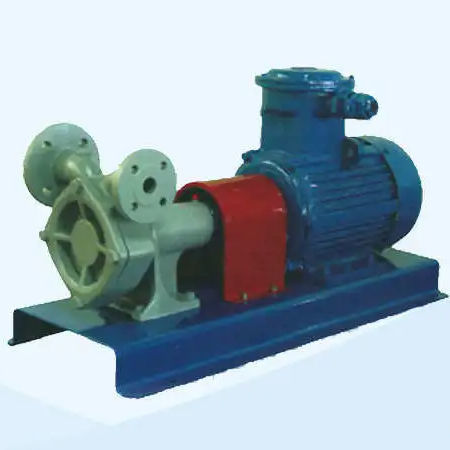

Turbine pump LWB-150for LPGelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Fluid
- for LPG
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial
- Applications
- filling
- Material
- metal
- Fluid specification
- for flammable fluids
- Pressure
27.6 bar
(400.304 psi)- Power
5.5 kW
(7.48 hp)- Fluid temperature
Min.: -32 °C
(-25.6 °F)Max.: 107 °C
(224.6 °F)- Input diameter
1.5 in
- Output diameter
1 in
Description
LWB-150 LPG turbine pump is applicable to aboveground or underground LPG tank at high differential pressure.
Advantage
An economical and high-efficient alternative to submersible pump
Meeting multiple demands for LPG filling. Either aboveground or underground LPG tank at high differential pressure, the pump can fill gas in high flow rate for double nozzles LPG dispenser.
Continuous and high-intensitive use
Easy and economical to use
Application
LPG dispenser filling
LPG tank filling
Vapor recuperation
Bulk transmission
Technical Specification
• Inlet : 1.5”
• Outlet : 1”
• Speed : 60Hz 3450RPM or 50Hz 2880RPM
• Max. Working Pressure : 27.6bar(400PSI)
• Max. Differential Pressure : 17.2bar(250PSI)
• Max. /Min Temperature : -32℃-107℃
• Power of Motor : 5.5Kw
