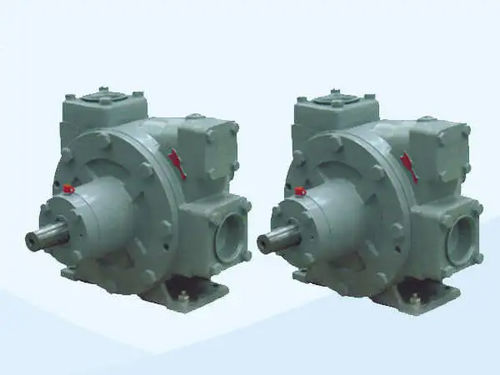

Rotary vane pump LYB-2000

for LPGelectricself-priming

LYB-2000 LPG vane pump, for transferring LPG, NH3, etc., is specially designed to perform in such severe operating conditions as high differential pressure, over speeding rotation and poor suction. Advantage Innovative cam design virtually eliminates cavitation New materials utilized in cam and blades and heavy duty bearings extend pump life. The design with single mechanical seal makes replacement and maintenance easier; Large non-metallic push-rod makes pump rotate in high speed. Application Bulk transmission of LPG and NH3 LPG station filling LPG tank filling Technical Specification • Inlet : NPT2” • outlet : NPT2” • Max.Speed : 80rmp • Motor Power : 7.5Kw • Temperature : -32℃-70℃ • Max.Working Pressure : 28.6bar • Max.differential Pressure : 8.6bar • Internal Relief Valve : Yes
