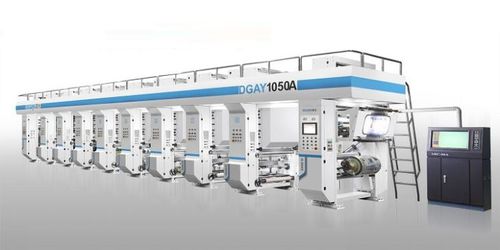

Rotogravure printing machine DGAY1050A

for paper8-colorautomatic

Feature: 7 servo motor controlling system 2. Unwind double station turret with air shaft, servo motor control, automatic splicing and cutting. Equipped with pressing roller to press on the roll. Equipped with static brush to remove static electric during running. 3. Rewind double station turret with air shaft, servo motor control, auto splicing and cutting.Equipped with pressing roller to press on the roll. Equipped with static brush to remove static electric during running. 4. Independent chassis without connection, the bolt will be installed into the ground which make machine more stable during high speed running. 5. Pneumatic heavy type doctor blade remove extra ink completely from the printing cylinder 6. Pneumatic printing cylinder installation with shaft 7. Ink is circulated automatically by ink pump 8. Special ink plate design make ink circulate more easily. 9. Automatic computer register both vertical and horizontal, video inspection 10. Double long register screw make registration accurate. 11. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, waste air eliminating tunnel. External blower increase the air amount for a better heating. 12. Unwind 2 floating roller, rewind 2 floating roller to adjust the tension. 13. Oven is pneumatic open and close. 14. Assisted oven install on the top of last printing unit to completely dry the printing material. 15. It can be installed with turning bar to realize reverse printing. 16. Water cooling roller to cool the printing material after heating 17. It can be installed with EPC device on unwind part especially for PE material
