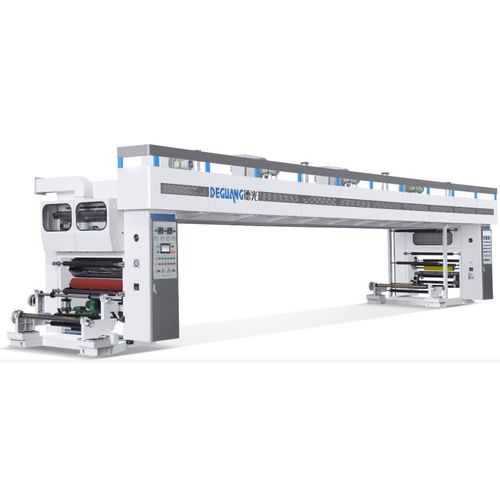

Paper laminating machine GF series

for plastic filmfor aluminum foildry

It is suitable for laminating plastic+plastic, plastic+aluminum foil, plastic+paper, plastic+non woven, it is mainly used to make food package bag, after lamination, the bag will be strong and not easy to split. Features 1. Unwind air shaft is controlled by magnetic powder brake. 2. Rewind air shaft is controlled by torque motor. 3. Each unwind has one EPC device the prevent the material moving left or right. 4. Both unwind has auto tension control, when the roll diameter becoming smaller, you do not need to adjust the tension manually, it can save time also it is better for tension control. 5. Pneumatic oven open and close, length 9 meters, it is convenient for guiding material. 6. 3 pace oven temperature independent control, we can adjust suitable temperature for each pace according to material drying. Constant hot air drying and recycled system, air circulation system, waste air exhausting tunnel, it can save the power and get the smelly air out of oven and resident solvent out of material which is healthy for the food package and better for environment. 7. EPC at the oven exit ensures the material not moving left and right during speeding after heating. 8. Gluing with anilox roller which is shaftless installation, it can save time for installing the roller.Gluing is inverter motor control, it can make gluing more accurate. 9. Pneumatic pressing roller is convenient for operation, pneumatic heavy type doctor blade, it has a longer life and can remove glue completely from the anilox roller.
