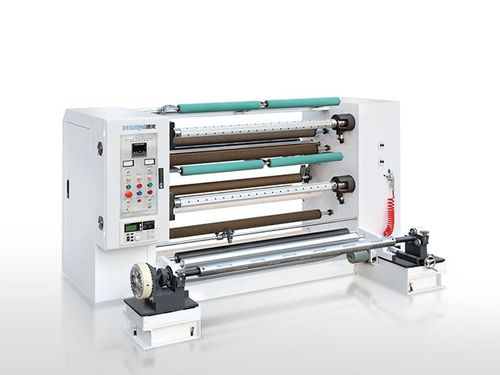

Paper slitter-rewinder LFQ1300

for plastic filmsfor labels

Technical specification Width - 1300mm Unwind diameter - 600mm(Can make to 1200mm) Rewind diameter - 500mm Paper core diameter - 76mm or 152mm Slitting speed - 200m/min Slitting width - 30-1300mm Slitting precision - 0.5mm Power - 5KW Weight - 1800KG Dimension - 1520*2580*1450mm Features: This machine is for slitting big width roll to small width roll, suitable for material of plastic film like Bopp, pvc, pe, pet, cpp, nylon and paper, non woven, PP woven. 1. Unwind air shaft is controlled by magnetic powder brake 2. Two rewind air shafts is controlled by two brake clutch 3. Unwind has auto tension control, when the roll diameter become small, the tension is adjusted automatically, so you do not need to adjust tension manually. 4. Unwind EPC device to prevent the material moving left or right 5. Meter counter can calculate slitting length automatically 6. Main motor is inverter motor 7. It is equipped with flat blade for slitting plastic film, rotary blade for slitting paper,non woven. 8. The machine is installed with a blower to blow the waste edge away. 9. Rewind pressing roller make rewinding roll more even and neat. 10. Rewind friction shaft is optional, when slitting small width roll, friction shaft is better. 11. PLC controlling system is optional, with touch screen, the operation is more convenient.
