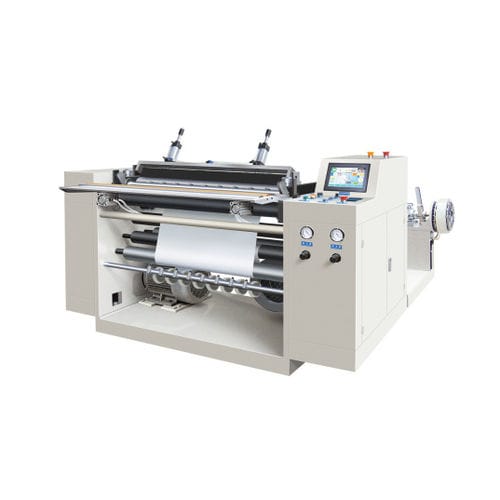

Paper slitter-rewinder for plastic films
Add to favorites
Compare this product
Characteristics
- Transformed product
- for paper, for plastic films
- Working width
Max.: 1,100 mm
(43 in)Min.: 56 mm
(2 in)- Speed
160,000 mm/min
(105 in/s)
Description
Technical parameter
Max material width - 1100mm
Max unwind diameter - 900mm
Max rewind diameter - 250mm
Min slitting width - 56mm
Unwind paper core diameter - 76mm
Material thickness - 30-150gram
Rewind paper core diameter - 0.5 inch, 1 inch
Speed - 160m/min
Power - 7.5KW
Dimension - 3000*1900*1500mm
Weight - 3000KG
This machine is for slitting cashier paper, fax paper, copy paper, medical electrocardiogram copy paper, recording paper which with small paper core.
Whole machine is PLC control with touch screen which is convenient operation.
2. Main motor is inverter motor
3. Paper roll diameter is automatically calculated to achieve constant tension control.
4. Unwind use magnetic powder brake.
