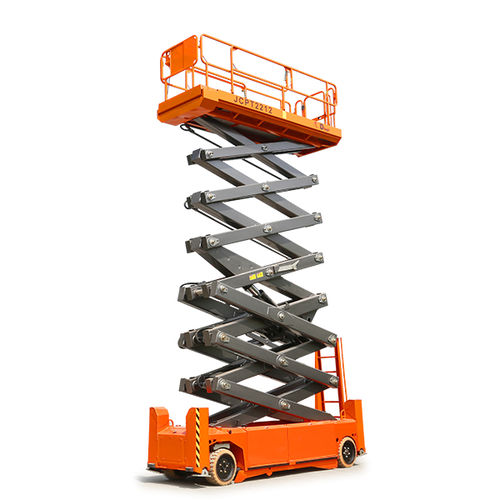

Self-propelled scissor lift JCPT2212HD

electric

Main spec. ● Working height：22.00m ● S.W.L：450kg Important features ● battery drive,lower noise,non-pollution,suitable for all kinds of working environment ● Max working height is 22m which other aerial work platform can't access to ● Automatic leveling outriggers ● automatic display of falut code for easy maintanence Size Working Height A22.00m Platform Floor Height B20.00m Overall Length C4.50m Overall Width D1.22m Overall Height(Rails up) E3.73m Overall Height(Rails down)2.90m Platform Size(Lengh/With F)3.98m×1.19m Platform Extension Size G1.50m Ground Clearance (Stowed)0.19m Ground Clearance (Raised)0.025m Wheel Base3.20m Performance S.W.L450kg S.W.L On Extension113kg Maximum Workers Number2 Turning Radius(Inside/Outside)0.33m/3.64m Travel Speed(Stowed)1.5km/h Travel Speed(Raised)0.15km/h Up/Down Speed120/90sec Gradeability25% Maximum Working Slope(indoor/outdoor)1.5°/0.3° Tyres22×9-16 Power Lifting motor48V/8kW Betteries48V/560Ah Integrated Charger48V/50A
