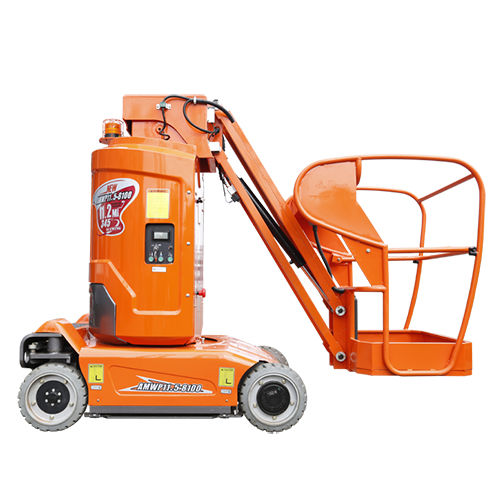

Self-propelled mast boom lift AMWP11.5-8100

battery-powered

Main spec. ● Working height ：11.20m ● S.W.L：200kg Important features ● 345°Turret rotation ● 3m horizontal extension, covering more working areas. ● touch screen, convenient for quick fault diagnosis and function setting ● Automatic pothole protection Size Max. working height 11.20m Max. platform height 9.20m Max. horizontal outreach 3.00m Up and Over height 7.89m Overall length A 2.72m Overall width B 1.00m Overall height C 1.99m Platform size(Length/Width) 0.87m×0.62m Ground clearance(Stowed) 0.06m Ground clearance(Raised) 0.019m Wheelbase D Performance S.W.L 200kg Max.occupants 2 Turning radius(Inside/Outside) 0.23/1.65m Turret rotation 345° Jib movement +70°/-60° Travel speed(Raised) 0.5km/h Travel speed(Stowed) 4.5km/h Up/Down speed 70/50sec Gradeability 25% Maximum slope 2.5° Tyres Ф381×127mm Power Drive motors 24V/1.5kW Lifting motor 24V/3kW Batteries 24V/240Ah Integrated charger 24V/30A
