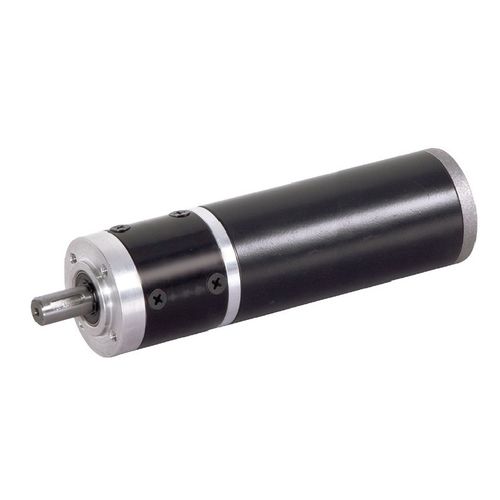

Planetary gear-motor 52JXM200K/52ZY125

DCcoaxialsolid-shaft

Characteristics Motor type : Brush commutated DC motor Gearbox type : Planetary Diameter : Gearbox: 52mm; DC motor: 52mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:4.5 ~1:162 No load current : 0.40A; 0.60A; 0.80A Nominal current : 2.0A; 3.50A; 4.50A No load speed : 2000rpm; 3000rpm; 4000rpm Nominal speed : 1600rpm; 2400rpm; 3200rpm Permissible load range : 2.0N.m ~ 30.0N.m for S1 duty cycle Nominal power : 30W; 50W; 80W IP rating : up to IP68 Description High torque DC planetary gear motor The 52ZY125 model of brushed DC motor is equipped with a 52mm low noise planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
