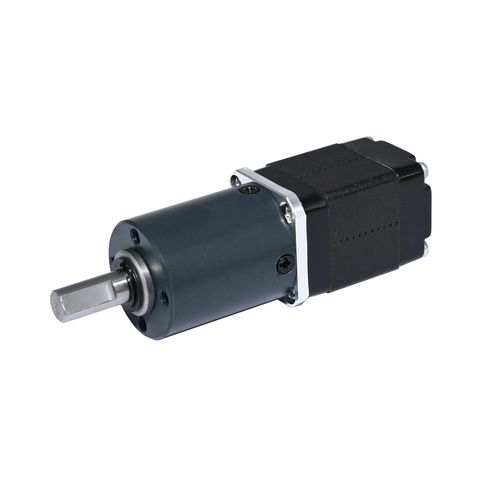

Planetary gear-motor 22JMBS20K/20STH

steppercoaxial1 - 5 Nm

Nema 8 Hybrid Stepper Planetary Gear Motor Model: 22JMBS20K-20STH Rated torque up to 2N.m for continuous running Optional IP rating: IP54, IP55,IP65;IP68 CE, UKCA, Reach and RoHS approval Optional components: magnetic/optical encoder; brake; conector Customized shaft dimensions and technical specifications are available upon requested.Characteristics Motor type : Nema 8 Hybrid Square Stepper Motor Gearbox type : Planetary Phase : 2 Step Angle : 1.8º Step Angle Accuracy : ±5% (full step, no load) Gear ratio : 1:3.71 ~1:369 Permissible load range : 0.2N.m ~ 2N.m for S1 duty cycle Temperature Rise : 80℃ Max. (rated current, 2 phase on) Ambient Temperature : -20℃ ~+50℃ Insulation Resistance : 100MΩ Min., 500V DC Dielectric Strength : 500V AC for one minute IP rating : up to IP68 Description Planetary Gear Stepping Motor 1.8º 20mm size hybrid square stepper motor is equipped with a 22mm ball bearing planetary gearbox Options Special shaft material and dimensions Custom design; OEM products available Magnetic/optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Features Small inertia, high precision, high stability, smooth running, low noise Advantageous torque with minimum space requirements Suitable for continuous and intermittent operation Can be installed in any mounting position Certificates & Qualifications REACH, CE & CCC, RoHS, ISO9001: 2015,
