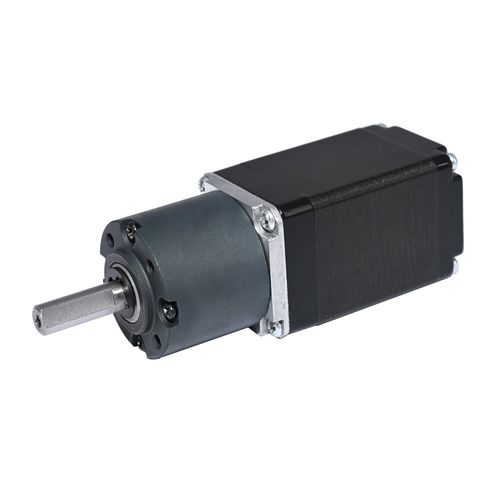

Planetary gear-motor 28JMBS50K/28STH

steppercoaxial1 - 5 Nm

Hybrid Planetary Gear Stepping Motor Nema 11 Integer Reduction Ratio Planetary Gear Stepper Motor Model: 28JMDS50K/28STH Customized technical specs. and dimensions are available upon requested. 28mm Planetary Gearbox Permissible Load Range: 1.5N.m~5.0N.m Characteristics Motor type : Nema11 Hybrid Square Stepper Motor Gearbox type : Planetary Phase : 2 Step Angle : 1.8º Step Angle Accuracy : ±5% (full step, no load) Gear ratio : 1:3.71 ~1:369 Permissible load range : 1.2N.m ~ 4N.m for S1 duty cycle Temperature Rise : 80℃ Max. (rated current, 2 phase on) Ambient Temperature : -20℃ ~+50℃ Insulation Resistance : 100MΩ Min., 500V DC Dielectric Strength : 500V AC for one minute IP rating : up to IP68 Description Planetary Gear Stepping Motor 1.8º 28mm size high torque hybrid square stepper motor is equipped with a 28mm ball bearing planetary gearbox Options Special shaft material and dimensions Custom design; OEM products available Magnetic/optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Features Small inertia, high precision, high stability, smooth running, low noise Advantageous torque with minimum space requirements Suitable for continuous and intermittent operation Can be installed in any mounting position Typical applications Printing system Bank equipment: ATM Metro fare collection system Scientific instrument industry: optical instrument Medical industry: hematology analyzer, biochemical analyzer, blood cell analyzer, Scanning equipment,etc. Communication equipment industry: mobile satellite TV Industrial automation industry: semiconductor testing equipment, winding machine, stripping machine
