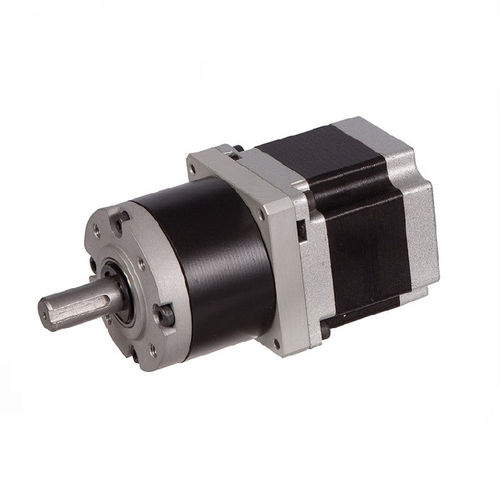

Fan gear-motor 56JXS300K/57STH

stepperplanetarycoaxial

Characteristics Motor type : Nema 23 Hybrid Square Stepper Motor Gearbox type : Planetary Phase : 2 Step Angle : 1.8º or 0.9º or 3.6º Step Angle Accuracy : ±5% (full step, no load) Gear ratio : 1:3.82 ~1:346 Permissible load range : 9N.m ~ 30N.m for S1 duty cycle Temperature Rise : 80℃ Max. (rated current, 2 phase on) Ambient Temperature : -20℃ ~+50℃ Insulation Resistance : 100MΩ Min., 500V DC Dielectric Strength : 500V AC for one minute IP rating : up to IP68 Description Planetary Gear Stepping Motor 1.8º 57mm size high torque hybrid square stepper motor is equipped with a 52mm ball bearing reinforced planetary gearbox Options Special shaft material and dimensions Custom design; OEM products available Magnetic/optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Integrated driver Features High resolution, high-precision positioning, small vibration, high output torque, low vibration, high stability, smooth running, low noise Advantageous torque with minimum space requirements Suitable for continuous and intermittent operation Can be installed in any mounting position Typical applications Printing system Bank equipment: ATM Metro fare collection system Water treatment industry: screw pump Scientific instrument industry: optical instrument Medical industry: Ventilator, Breathing Machine, Syringe pump, infusion pump, dental equipment, hematology analyzer, biochemical analyzer, blood cell analyzer, Scanning equipment,etc. Textile industry: Winding machine, flat knitting machine, circular knitting machine, bobbin winder
