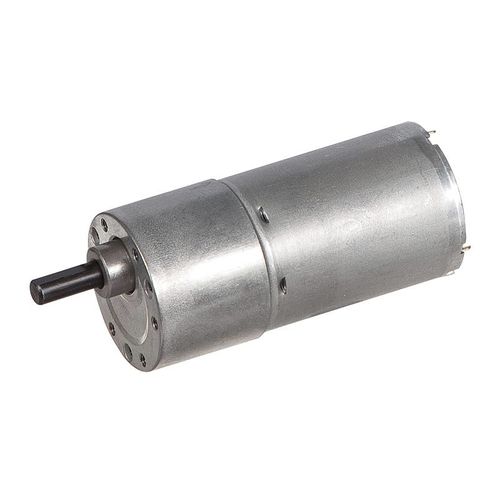

DC micro geared motor 37JBE10K/36ZY50

permanent magnetspurparallel-shaft

Characteristics Motor type : Micro Brush commutated DC motor Gearbox type : Spur Diameter : Gearbox: 37mm; DC motor:36mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:6 ~1:3000 No load current : 100mA; 120mA No load speed : 3600rpm; 4200rpm Nominal current : 0.40A; 0.43A Nominal speed : 3000rpm; 3450rpm Permissible load range : up to 1.0N.m for S1 duty cycle Nominal power : 3.40W; 4.20W IP rating : up to IP68 Description Micro DC spur gear motor The 36ZY50 model of brushed DC motor is equipped with a 37mm spur gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
