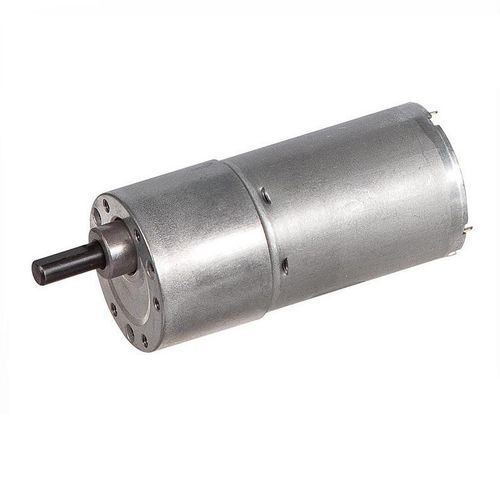

Spur micro geared motor 37JBE10K/36ZY57

DCpermanent magnetparallel-shaft

Characteristics Motor type - Micro Brush commutated DC motor Gearbox type - Spur Diameter - Gearbox: 37mm; DC motor:36mm Nominal voltage - 12V/24V DC or customized Gear ratio - 1:6 ~1:3000 No load current - 120mA No load speed - 3600rpm; 4200rpm Nominal current - 0.50A; 0.52A Nominal speed - 3000rpm; 3600rpm Permissible load range - up to 1.0N.m for S1 duty cycle Nominal power - 5.0W; 7.0W IP rating - up to IP68 Description Micro DC spur gear motor The 36ZY57 model of brushed DC motor is equipped with a 37mm spur gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Robot Lawn Mower Height Adjustment; Oven
