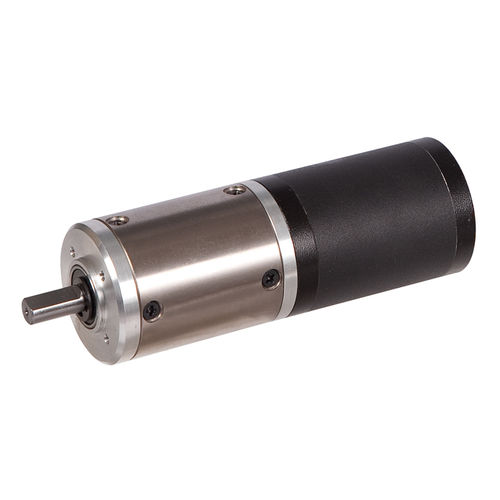

Planetary gear-motor 42JX150K/42ZWN60

three-phasebrushless DCcoaxial

Characteristics Motor type : Brushless DC motor Gearbox type : Planetary Pole : 8 Phase : 3 Diameter : Gearbox: 42mm; DC motor: 42mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:3.5 ~1: 294 Peak current : 1.5A;2.6A No load speed : 2000rpm Nominal speed : 1400rpm Permissible load range : 2N.m-15N.m for S1 duty cycle Rated power : 5.8W;11W Description Compact design brushless DC planetary gear motor The 42ZWN60 model of brushless DC motor is equipped with a 42mm planetary gearbox. Options With built-in driver or external driver Inner hall sensor Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Operation in both directions of rotation(CW & CCW) High power density, low noise, strong overload capacity Speeds up to 10,000 RPM possible High torque and output power with compact package Various gear ratios enable either speed reduction or to increase the torque capability. Long service life and smooth running thanks to precision ball race Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications: Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
