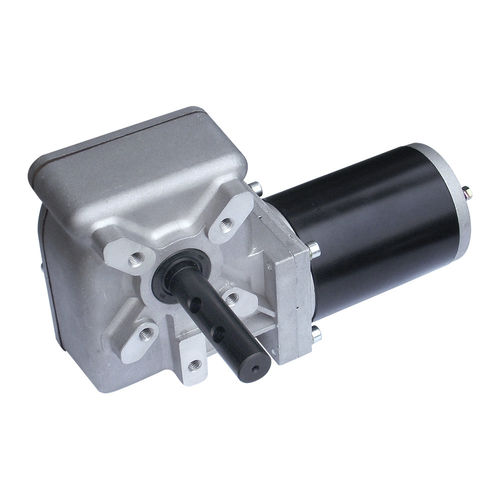

Truck gear-motor 1802066

DCpermanent magnetworm

TARP MOTOR 80ZYT-12/JW-3 SPECS AND FEATURE (GEAR RATIO 60:1): 3 years warranty Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 600 in-lbs) 60:1 gear ratio. 60 RPM (+/-6RPM) Power 600W ( L=246mm ) or 900W ( L=276mm, Model 80ZYTS-12/JW-3 ) Epoxy sealed gearbox maintains lubrication. 3-1/8" x 3/4" extended output shaft fits wide range of tarp systems. Sealed drive shaft and encased bearing prevents contamination. Chrome/plastic cover and fasteners included. 100% tested for quality control. TARP MOTOR 80ZYT-12/JW-3 SPECS AND FEATURE (GEAR RATIO 90:1): 3 years warranty Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 800 in-lbs) 90:1 gear ratio. 40 RPM (+/-5RPM) Power 600W ( L=246mm ) or 900W ( L=276mm, Model 80ZYTS-12/JW-3 ) Epoxy sealed gearbox maintains lubrication. 3-1/8" x 3/4" extended output shaft fits wide range of tarp systems. Sealed drive shaft and encased bearing prevents contamination. Chrome/plastic cover and fasteners included. Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer. 12V Motor (Power Drive #'s 719527, 716527, 719520, 729520) Part No.: 90-33319 12V Motor (Power Drive #'s 719627, 716627, 716620, 729620) Part No.: 90-33295 24V Motor (Power Drive #'s 719537, 716537) Part No.: 90-33320 24V Motor (Power Drive #’s 719637, 719630, 719632) Part No.: 90-33318 12V Motor (Power Drive #’s 716727, 719727) Part No.: 90-33294
