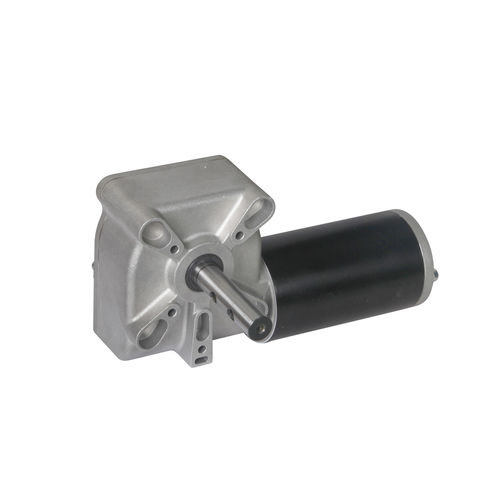

Brushless DC gear-motor 80ZWN-12/JW-7wormright anglesolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Power
- 500 W...1000 W
- Voltage
- 24 V, 12 V
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Performance
- high-torque, maintenance-free, for heavy loads
- Product applications
- for robotics, for automation, for industrial applications, for lawn-mowers, for lifting applications, for vehicles, for robots, cleaning machine, for stairlifts, for marine applications, for trolleys, antenna, for agricultural applications, for tarp systems, for heavy-duty applications, for trailer landing gear, for power steering, for solar tracker, for trucks, industrial door
- Certifications
- CE, OHSAS 18001, ISO 9001, ISO 14001, ISO/TS 16949
- Other characteristics
- compact, maintenance-free, 4-pole
- Gear ratio
60 unit
Description
Brushless DC Tarp Gear Motors w/Chrome Cover
BLDC Tarp Motors
CANVAS-TOP TRUCK BRUSHLESS DC MOTORS
Dump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems.
TARP MOTOR 80ZWN-12/JW-7 SPECS AND FEATURE (GEAR RATIO 60:1):
3 years warranty
Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 600 in-lbs)
60:1 gear ratio.
60 RPM (+/-6RPM)
Power 600W ( L=214.5mm ) or 900W ( L=218.5mm, Model 80ZWNS-12/JW-7 )
Waterproof IP67
Epoxy sealed gearbox maintains lubrication.
3-1/8" x 3/4" extended output shaft fits wide range of tarp systems.
Sealed drive shaft and encased bearing prevents contamination.
Chrome/plastic cover and fasteners included.
100% tested for quality control.
BRUSHLESS DC TARP MOTOR 80ZWN-12/JW-7 SPECS AND FEATURE (GEAR RATIO 90:1):
3 years warranty
Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 800 in-lbs)
90:1 gear ratio.
40 RPM (+/-5RPM)
Power 600W ( L=214.5mm ) or 900W ( L=218.5mm, Model 80ZWNS-12/JW-7 )
Waterproof IP67
Epoxy sealed gearbox maintains lubrication.
3-1/8" x 3/4" extended output shaft fits wide range of tarp systems.
Sealed drive shaft and encased bearing prevents contamination.
Chrome/plastic cover and fasteners included.
100% tested for quality control.
Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.
