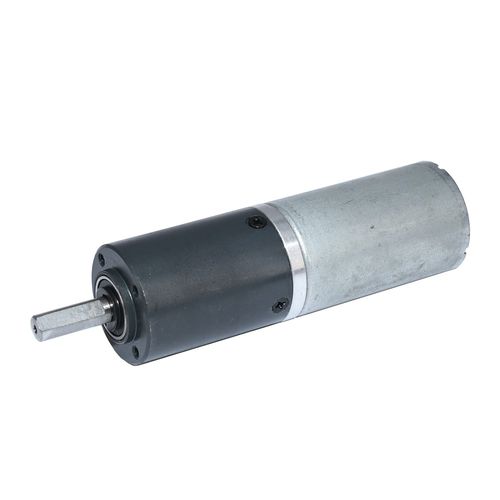

Planetary micro geared motor 28JNB30K/28ZY47

DCpermanent magnetcoaxial

Micro 28mm Diameter DC Planetary Gear Motor Model: 28JNB30K/28ZY47 Voltage: 6 ~ 400V DC Rated torque up to 3N.m for continuous running Oil bearing or ball bearing Optional components: two-channel magnetic encoder; two-channel or three-channel optical encoder; power-on/power-off brake; cable connector Customized shaft material & dimensions, and technical specifications are available upon requested. CE, UKCA, Reach and RoHS approval Characteristics Motor type : Brush commutated DC motor Gearbox type : Planetary Diameter : Gearbox: 28mm; DC motor:28mm Nominal voltage : 12V/24V DC or customized Gear ratio : 1:3.7 ~1:2000 Description Micro DC planetary gear motor The 28ZY47 model of brushed DC motor is equipped with a 28mm planetary gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds ranging up to 10,000 RPM Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position
