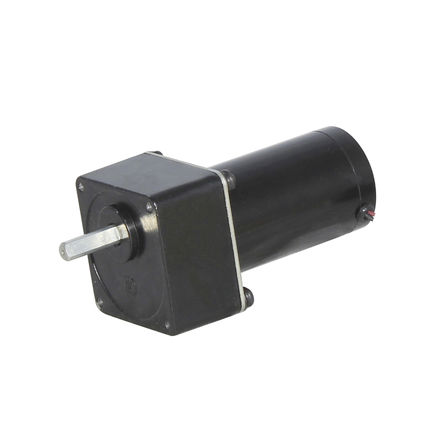

Spur gear-motor 60JB50K/45ZY78

DCpermanent magnetelectronically commutated

Motor type : Brush commutated DC motor Gearbox type : Spur Size : Gearbox: 60mm; DC motor 45mm Nominal voltage : 12V/24V DC or customized No load current : 0.25A; 0.28A No load speed : 3000rpm; 4000rpm Nominal current : 0.90A; 1.20A Nominal speed : 2500rpm; 3400rpm Permissible load range : up to 5.0N.m for S1 duty cycle Nominal power : 14.0W; 18.0W IP rating : up to IP68 DC spur gear motor The 45ZY78 model of brushed DC motor is equipped with a 60mm spur gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
