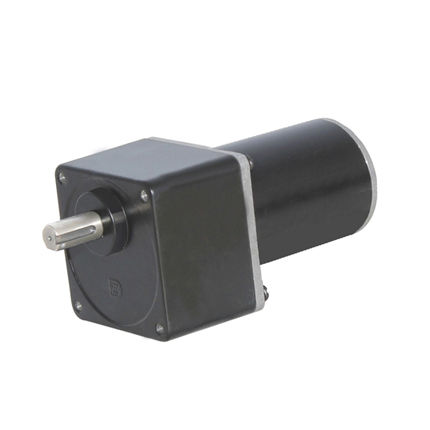

Spur gear-motor 104JB300K/80ZY115

DCpermanent magnetelectronically commutated

Motor type : Brush commutated DC motor Gearbox type : Spur Size : Gearbox: 104mm; DC motor:80mm Nominal voltage : 12V/24V DC or customized No load current : 0.30A; 0.50A No load speed : 2000rpm; 3000rpm Nominal current : 3.50A; 7.50A Nominal speed : 1700rpm; 2600rpm Permissible load range : up to 30.0N.m for S1 duty cycle Nominal power : 57.0W; 120.0W IP rating : up to IP68 High torque DC spur gear motor The 80ZY115 model of brushed DC motor is equipped with a 104mm square spur gearbox Options Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
