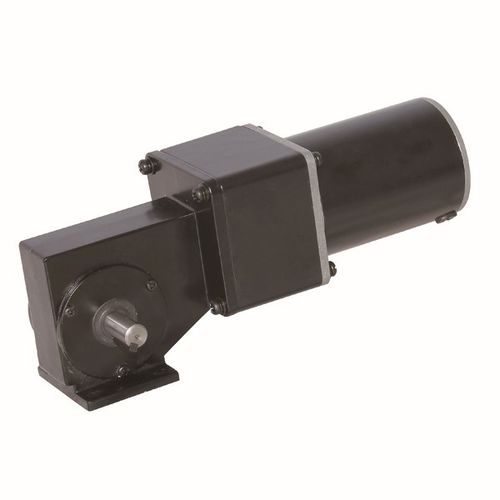

DC gear-motor 90JW/JB/80ZY115
permanent magnetwormright angle

DC gear-motor
DC gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
DC, permanent magnet
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, hollow-shaft
Power
50 W...100 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm
Product applications
for medical equipment, for automation, for industrial applications, for conveyor, for automobiles, for lifting applications, for pump, for solar tracker, for automatic doors, for lawn-mowers, for air conditioning
Certifications
CE, OHSAS 18001, ISO 9001, ISO 14001
Other characteristics
compact, custom
Gear ratio

125 unit, 160 unit, 250 unit

Description

Motor type : Permanent magnet DC Motor Gearbox type : Worm/Right angle Diameter : DC motor:80mm No-load Current : 1.5A Nominal voltage : 12V/24V or Customized Nominal speed : 2000rpm Permissible load range : Up to 20N.m for S1 duty cycle Nominal power : 84W Compact design DC motor is equipped with two gearboxes The 80ZY115 model of DC motor is equipped with a 90JW worm gearbox and a JB spur gearbox Options Left ,right or hollow output shaft are available. Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 3000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
