Characteristics
Motor type : Brushless DC motor
Gearbox type : Spur
Diameter : Gearbox: 60mm; DC motor: 57mm
Nominal voltage : 12V/24V DC or customized
Gear ratio : 1:3~1:30
No load current : 400mA;450mA
Nominal current : 2.8A;4.0A
No load speed : 2000rpm;3000rpm
Nominal speed : 1200rpm;2000rpm
Permissible load range : 2N.m-5N.m for S1 duty cycle
Rated power : 40W;60W
Description

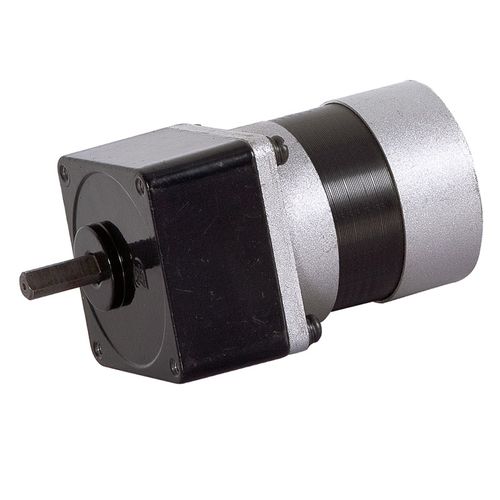

Compact design brushless DC spur gear motor
The 57ZWN75 model of brushless DC motor is equipped with a 60mm spur gearbox.
Options
With built-in driver or external driver
Inner hall sensor
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Special shaft material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Operation in both directions of rotation(CW & CCW)
High power density, low noise, strong overload capacity
Speeds up to 10,000 RPM possible
High torque and output power with compact package
Various gear ratios enable either speed reduction or to increase the torque capability.
Long service life and smooth running thanks to precision ball race
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
Typical applications:
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
