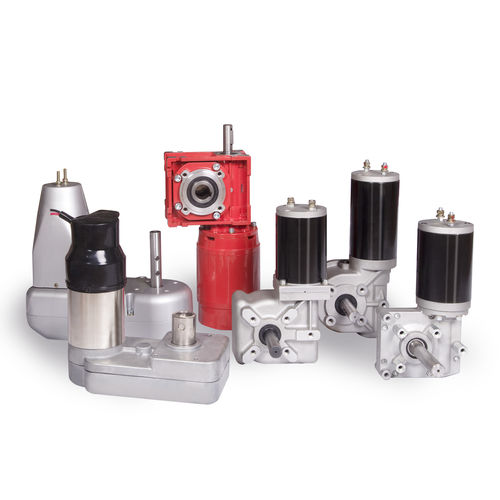

Worm gear-motor 719 seriesDCACpermanent magnet
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, AC, permanent magnet, brushless, servomotor
- Type
- worm, spur
- Shaft orientation
- right angle, parallel-shaft
- Shaft configuration
- solid-shaft, hollow-shaft
- Power
- 100 W...500 W, 10 W...50 W, 50 W...100 W, 0 W...10 W, 500 W...1000 W, 1 kW...2 kW
- Voltage
- 24 V, 12 V, 48 V, 36 V, 18 V
- Torque
- 0.5 - 1 Nm, 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.2 - 0.5 Nm, 50 - 100 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm, 100 - 200 Nm, 200 - 500 Nm
- Mounting
- flange-mounted
- Performance
- high-torque, high-power, high-efficiency, high-performance, low-noise, precision, high load capacity
- Product applications
- for the food industry, industrial, for automation, for robotics, for mixers, for agitators, for doors, for automatic distributors, for medical equipment, for trucks, for welding machines, cleaning machine, for heavy-duty applications, for agricultural applications, for pharmaceutical applications, for vehicles, for lifting applications, for conveyor, door, for pump, for tracks, for machine tools, for automobiles, for packaging, for power steering, with encoder, window, for lawn-mowers, for solar tracker, for conveyor systems, for electric vehicles, for gate, for the packaging industry, for machines, for robots
- Certifications
- CE, ISO 9001, ISO 14001
- Other characteristics
- compact, 4-pole
Description
Tarp Gear Motors Series w/Chrome Cover
DC right angle gear motor/DC worm gear motor/DC motor with worm gearbox/Tarp motors/DC motor with worm gearbox/DC gearmotor/DC geared motor/electric DC gear motor
MOTOR SPECS AND FEATURE:
· Epoxy sealed gearbox maintains lubrication
· 12V DC or 24V DC
· Rated Speed: 10RPM ~ 99RPM
· Max. Torque up to 270N.m
· Gear Ratios: 45:1, 60:1, 70:1, 90:1, 141:1
· Right Angle or Parallel Shaft design
· IP Class up to IP66
· 1~3 years warranty
· Power 600W(0.8HP ), 900W ( 1.2HP ) ,1125W (1.5HP ), 1500W(2.0HP ), 1875W(2.5HP)
Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.
12V Motor (Power Drive #'s 719527, 716527, 719520, 729520) Part No.: 90-33319
12V Motor (Power Drive #'s 719627, 716627, 716620, 729620) Part No.: 90-33295
24V Motor (Power Drive #'s 719537, 716537) Part No.: 90-33320
24V Motor (Power Drive #’s 719637, 719630, 719632) Part No.: 90-33318
12V Motor (Power Drive #’s 716727, 719727) Part No.: 90-33294
