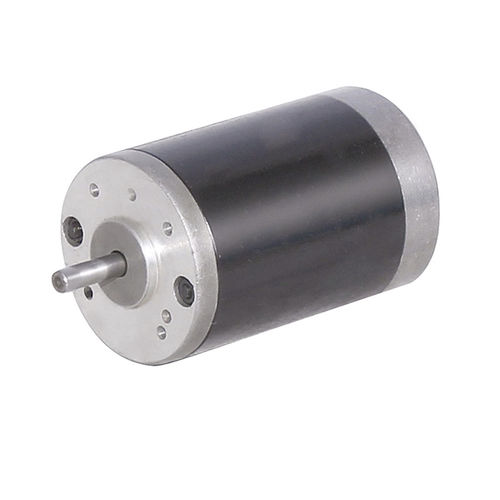

DC motor 45ZYN68
brushed24 V12 V

DC motor - 45ZYN68 - Zhejiang Dongzheng Motor Co., Ltd. - brushed / 24 V / 12 V

Add to favorites

Compare this product

Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

AC/DC: DC
Type: brushed
Voltage: 24 V, 12 V
Protection class: IP68, EMC
Configuration: compact
Applications: industrial, for medical equipment, for household appliances, for the automotive industry, solar
Other characteristics: custom, reversible, with built-in encoder
Power: 7 W, 16 W, 30 W
(0.01 hp, 0.022 hp, 0.041 hp)
Intensity: 180 mA, 250 mA, 300 mA
Torque: 0.042 Nm, 0.065 Nm, 0.09 Nm
(0.031 ft.lb, 0.0479 ft.lb, 0.0664 ft.lb)
Rotational speed: 2,000 rpm, 3,000 rpm, 4,000 rpm
(12,566.37 rad.min-1, 18,849.56 rad.min-1, 25,132.74 rad.min-1)
Diameter: 45 mm
(1.77 in)

Description

Characteristics Motor type : Rare earth magnet DC motor Optional gearbox type : Planetary/Spur/Worm/Right Angle Diameter : 45mm Length : 68mm Nominal voltage : 12V/24V DC or customized No load current : 0.18A; 0.25A; 0.30A No load speed : 2000rpm; 3000rpm; 4000rpm Norminal current : 0.50A; 1.20A; 2.0A Nominal speed : 1600rpm; 2400rpm; 3200rpm Nominal torque : 42mN.m; 65mN.m; 90mN.m; Nominal power : 7W; 16W; 30W IP rating : up to IP68 Description Compact design high torque rare earth magnet DC motor The 45ZYN68 model of brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox Options Planetary/Spur/Worm/Right Angle gearbox Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
