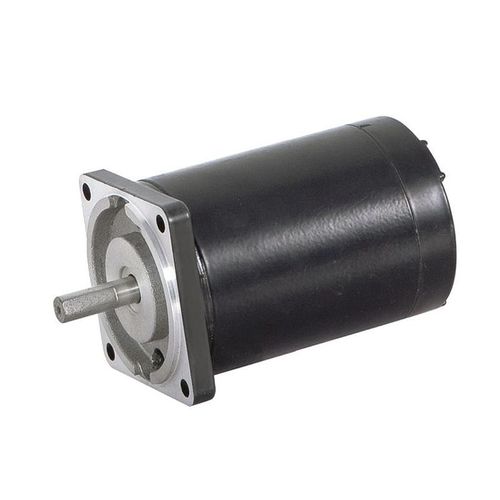

DC motor 60ZY95

brushed24 V12 V

Characteristics Motor type : Brush commutated permanent magnet DC motor Optional gearbox type : Planetary/Spur/Worm/Right Angle Diameter : 60mm Length : 95mm Nominal voltage : 12V/24V DC or customized No load current : 0.40A; 0.50A; No load speed : 2000rpm; 3000rpm Norminal current : 1.80A; 3.0A Nominal speed : 1600rpm; 2400rpm Nominal torque : 150mN.m; 180mN.m Nominal power : 25W; 40W IP rating : up to IP68 Description Compact design brushed DC motor The 60ZY95 model of brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox Options Planetary/Spur/Worm/Right Angle gearbox Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower cutting system, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
