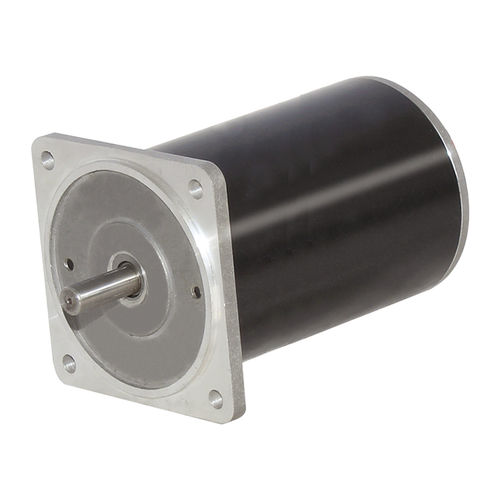

DC motor 80ZY125, 96ZY140

brushed24 V12 V

Characteristics Motor type : Brush commutated permanent magnet DC motor Optional gearbox type : Planetary/Spur/Worm/Right Angle Diameter : 80mm Length : 125mm Nominal voltage : 12V/24V DC or customized No load current : 0.50A; 1.20A No load speed : 2000rpm; 3500rpm Norminal current : 6.0A; 10.0A Nominal speed : 1700rpm; 3000rpm Nominal torque : 0.64N.m; 0.70N.m Nominal power : 110W; 200W IP rating : up to IP68 Description Compact design high torque brushed DC motor The 80ZY125 model of brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox Options Planetary/Spur/Worm/Right Angle gearbox Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Power-on or power-off type electromagnetic brake Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 10,000 RPM possible Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
