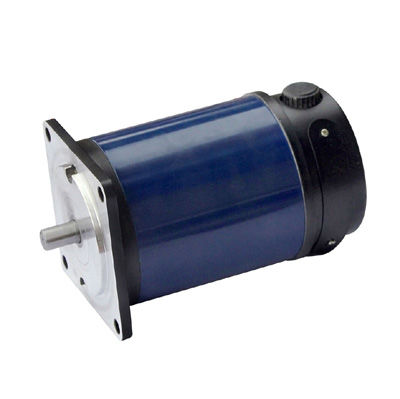

DC motor 110ZYT series
brushed220 V110 V

DC motor
DC motor
Add to favorites
Compare this product

Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
220 V, 110 V, 24 V, 12 V, 48 V, 36 V
Other characteristics
custom, reversible
Power

Max.: 1,250 W
(1.7 hp)

600 W, 700 W, 1,000 W
(0.816 hp, 0.952 hp, 1.36 hp)

Min.: 200 W
(0.272 hp)

Intensity

4 A, 33 A, 56 A

Torque

1.4 Nm, 1.95 Nm, 2.25 Nm
(1.0326 ft.lb, 1.4382 ft.lb, 1.6595 ft.lb)

Rotational speed

Max.: 9,000 rpm
(56,548.67 rad.min-1)

3,500 rpm, 3,700 rpm, 8,000 rpm
(21,991.15 rad.min-1, 23,247.79 rad.min-1, 50,265.48 rad.min-1)

Min.: 750 rpm
(4,712.39 rad.min-1)

Diameter

110 mm
(4.33 in)

Description

· Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC · Without Gearbox · Customized shaft & front cover available upon request 110ZY DC BRUSH MOTOR TYPICAL SPECS. Model No. - Voltage - Rated Power - Rated Speea - Rated Torque - Rated Current - No Load Speea - Length Units - V - W - rpm - N.m - A - rpm - mm 110ZYT24-1OOC - 24 - 1000 - 7000 - 1.40 - 55.5 - 8000 - 188 110ZYT24-600 - 24 - 600 - 3000 - 1.95 - 33.0 - 3700 - 228 11OZYT220-7OC - 220 - 700 - 3000 - 2.25 - 4.0 - 3500 - 218
