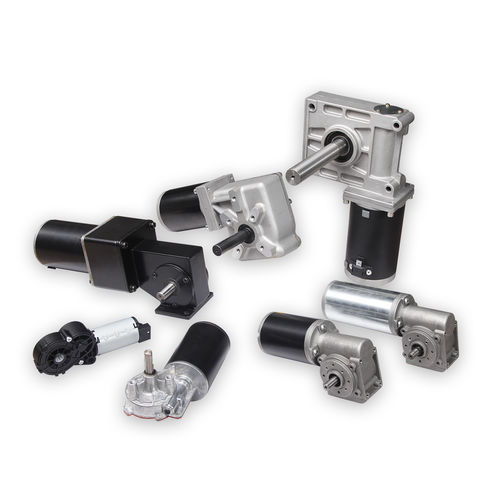

Worm gear-motor JW_Z series
DCpermanent magnetbrushless

worm gear-motor
worm gear-motor
worm gear-motor
worm gear-motor
worm gear-motor
worm gear-motor
Add to favorites
Compare this product

Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC, permanent magnet, brushless, hydraulic
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, hollow-shaft
Power
100 W...500 W, 10 W...50 W, 50 W...100 W, 0 W...10 W, 500 W...1000 W, 1 kW...2 kW
Voltage
220 V, 110 V, 230 V, 240 V, 24 V, 12 V, 48 V, 36 V, 18 V, 10 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 50 - 100 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm, 100 - 200 Nm, 200 - 500 Nm, 500 - 1000 Nm
Performance
high-torque, high-efficiency, high-power, low-noise, high-performance, high-precision, high load capacity, low-noise level
Product applications
for automobiles, for automation, for industrial applications, for vehicles, for curtains, for conveyor systems, industrial door, for the food industry, appliance, electronic equipment, for furniture, for trolleys, for automatic doors, for pump, for seat adjustment, cleaning machine, for conveyor, for robotics, for tracks, for hygienic applications, for lifting applications, for door lock, door, for mixers, for solar tracker, for home appliances, for the chemical industry, for lawn-mowers, for cleaners, for packaging, for floor scrubbers, for agricultural applications, for pharmaceutical applications, with encoder, for stairlifts, flange, for machines, window, for welding machines, wiper, for hospital beds, for marine applications, for trucks, for robots, for the packaging industry, for sliding doors, for sliding gates
Certifications
CE, ISO 9001, ISO 14001
Other characteristics
compact, custom, with encoder, precision
Gear ratio

30 unit

Max.: 120 unit

Min.: 5 unit

Operating temperature

40 °C
(104 °F)

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

DYD DC Right Angle Gear Series DC worm gear motor/DC right angle gearmotor/DC motor with right angle gearbox/DC gearmotor/DC geared motor/electric DC motor/ DC motor with worm gearbox/DC worm geared motor Gearbox Frame: 50JW, 63JW, 70JW, 90JW, 102WJ, 108WJ, 122WJ, 130WJ, JW-3, JW-5, RV030, RV040, RV050, RV063, RV075, RV090 Motor OD: 42MM ~ 170MM Rated Torque up to 300N.m Rated Speed: 1 ~ 700RPM Protection up to IP66 Optional: Encoder / Brake / Connector / Pulley Typical applications:automatic sliding door systems, power wheel chair, lift system, etc.
