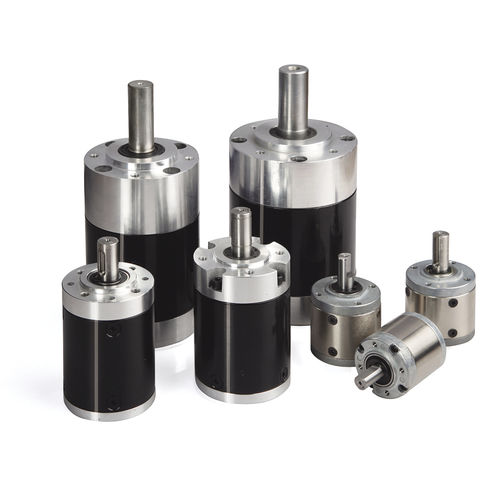

Planetary gearbox JX Seriescoaxial500 - 1000 Nm200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 500 - 1000 Nm, 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm, 1 - 5 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm
- Performance
- high-precision, high-torque, high-performance
- Applications
- transmission, for electric motors, for DC motors
Description
Characteristics
DYD PLANETARY GEARHEAD ( OD mm ): 16mm, 22mm, 24mm, 28mm, 30mm, 32mm, 36mm, 40mm, 42mm, 45mm, 48mm, 52mm, 56mm, 60mm, 72mm, 80mm, 82mm, 92mm, 110JX, 120JX
DYD MOTOR TYPES: Brushed DC Motor, Brushless DC Motor, Stepping Motor, AC Motor.
Multiple Ratios available
Low noise level
Smooth and Quiet Operation for Continuous Use
High Rated Torque up to 1000N.m
Customized Shaft Material and Shaft Dimensions Available.
Extremely High Efficiency with Only 8% Loss Per Train!
