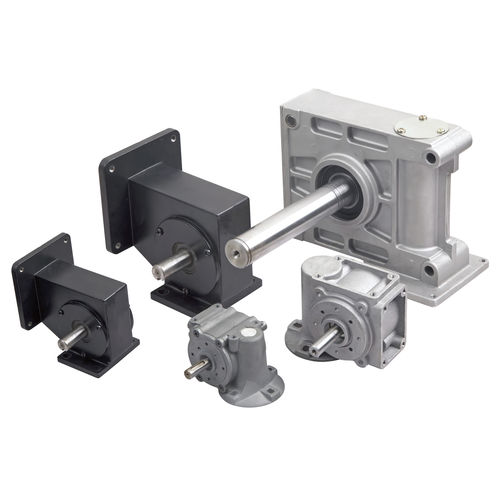

Worm gearbox JW Seriesright anglehollow-shaft50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 50 - 100 Nm, 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 1 - 5 Nm, 10 - 20 Nm, 5 - 10 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm
- Performance
- low-noise, high-performance, high-torque, high load capacity
- Applications
- transmission, industrial
- Rotational speed
Max.: 8,000 rpm
(50,265.48 rad.min-1)Min.: 500 rpm
(3,141.59 rad.min-1)- Power
Max.: 5 kW
(6.8 hp)Min.: 0 kW
(0 hp)
Description
DYD Worm Gearbox Series
Worm Gearboxes, Right Angle Gearboxes
Gearbox Dimensions: Φ30mm ~ Φ200mm
Gear Ratios: 5:1 ~ 150:1
Matched Motor: Brushed DC motor; Brushless DC motor; AC motor; Stepper motor; Servo motor
