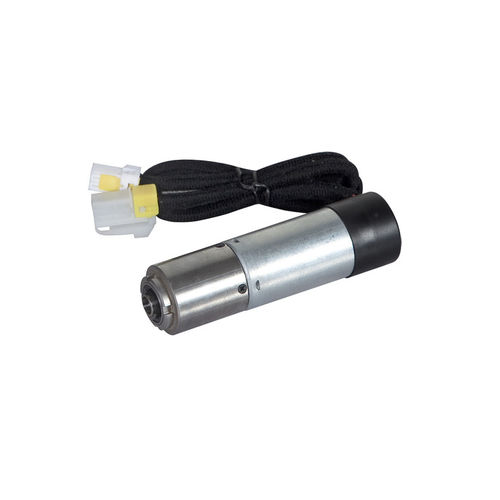

DC gear-motor 29ZY53H-1270/29JX22-ISpermanent magnetplanetaryconcentric
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- planetary
- Shaft orientation
- concentric
- Shaft configuration
- hollow-shaft
- Power
- 10 W...50 W
- Voltage
- 12 V
- Torque
- 1 - 5 Nm
- Performance
- low-noise
- Product applications
- for vehicles, for lifting applications, for automobiles, door, with encoder, for doors, for gate
- Other characteristics
- with encoder
- Gear ratio
22 unit, 22.2 unit
Description
Characteristics
Auto Tail Gate Linear Actuator Motor
12V high torque silent automobile electric tail door motor with micro metal gearbox
DC Planetary 1W-99W Electric Gear Motor For Automobile Power Lift Gate
Auto Electric Tailgate Lift DC Gear Motor
Power Tailgate Gear Motor 29ZY53H-1270/29JX22-IS SPECS.:
Voltage 12VDC
Rated Current 4.10A
Output Power 40.1W
Rated Speed 280RPM
Rated Torque 1.09N.m
Gear Ratio 22/1
Spline Hollow Shaft, 21 inner teeth, Dedendum circle Φ7.9;
Gear Ratio 22.2:1, First stage is helical tooth;
Gearbox front cover and ring gear is made into one part, metal material;
With/Without Magnetic Encoder
