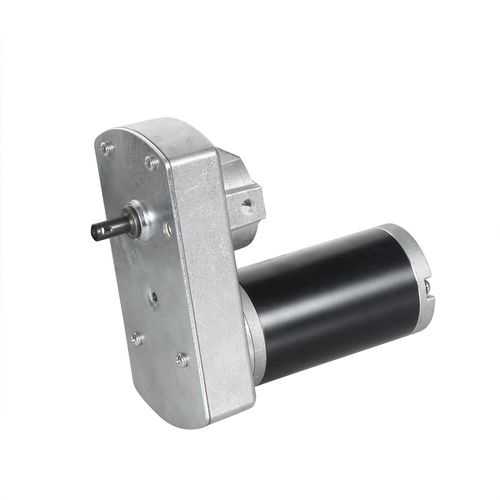

DC gear-motor RP-785615permanent magnetspurparallel-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W
- Voltage
- 12 V
- Torque
- 5 - 10 Nm
- Performance
- high-efficiency, high-performance, maintenance-free, precision, high load capacity, low-noise
- Product applications
- for automation, for vehicles
- Certifications
- CE, OHSAS 18001, ISO 9001, ISO 14001
- Other characteristics
- compact, maintenance-free
- Gear ratio
18 unit
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 65 °C
(149 °F)
Description
RP-785615 RV Slide Out Motor 18:1 Ratio M-8910
Model: 63ZY116-1257/160JB18G
Item # RP-785615, M-8910
Voltage 12V DC
No-load Current 2.72A
No-load Speed 315rpm
Max. Efficiency Point Data:
Current 21.64A
Speed 270rpm
Torque 5.49N.m
Max. Efficiency 60%
Gear Ratio 18 : 1
With Current Limiting Protector
UL, CE, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; connector
Customized shaft dimensions and technical specifications are available upon requested
Typical Applications: High-Speed Power Stabilizer Jack, RV Leveling System, Trailer Leveling System
