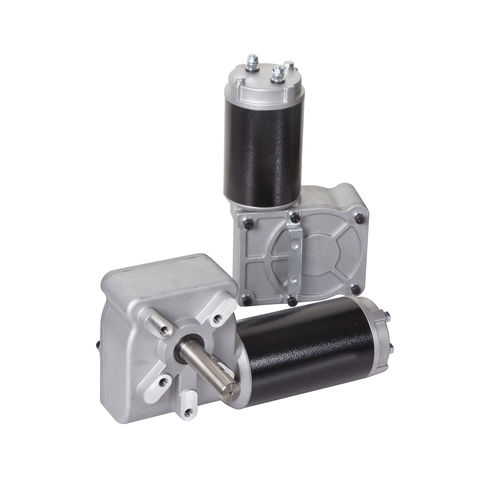

Tarp system gear-motor 80ZYTS-12/JW-7A
DCpermanent magnetworm

tarp system gear-motor
tarp system gear-motor
tarp system gear-motor
tarp system gear-motor
tarp system gear-motor
tarp system gear-motor
tarp system gear-motor
Add to favorites
Compare this product

Go to the Zhejiang Dongzheng Motor Co., Ltd. website for more information

Characteristics

Motor type
DC, permanent magnet
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
500 W...1000 W
Voltage
24 V, 12 V
Torque
50 - 100 Nm, 100 - 200 Nm
Performance
high-torque, maintenance-free
Product applications
for trucks, for tarp systems
Certifications
CE, OHSAS 18001, ISO 9001, ISO 14001, ISO/TS 16949
Other characteristics
compact, maintenance-free, 4-pole, IP65, low-speed
Gear ratio

Min.: 45 unit

Max.: 90 unit

60 unit

Operating temperature

Min.: -45 °C
(-49 °F)

Max.: 65 °C
(149 °F)

25 °C
(77 °F)

Description

Tarp Gear Motor w/Chrome Cover Dump Truck Tarp Motor / Canvas Engine ( Tipper Sheeting Motor, Dura-Torque Gearmotor ), fits most automatic tarps systems. 900W TARP MOTOR 80ZYTS-12/JW-7A SPECS AND FEATURE (GEAR RATIO 90:1): 3 years warranty Hi-torque, direct drive 12VDC (or 24VDC) motor (output torque 800 in-lbs) 90:1 gear ratio. No-load Speed 55RPM / Rated Speed 40 RPM (+/-5RPM) Power 600W ( L = 240mm) or 900W ( L = 270mm, Model 80ZYTS-12/JW-7A, 80ZYTS-24/JW-7A ) Epoxy sealed gearbox maintains lubrication. 2-1/2" x 3/4" extended output shaft fits wide range of tarp systems. Sealed drive shaft and encased bearing prevents contamination. Chrome/plastic cover and fasteners included. Waterproof Level IP65 100% tested for quality control. Ambient temperature of minus 40° available upon request Optional 24V DC, Gear Ratio 60:1 or 45:1, 600W/0.8HP, 1200W/1.5HP, 2.0HP, 2.5HP Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5543965/5541065, TSI Apache, Tomahawk, Enforcer.
