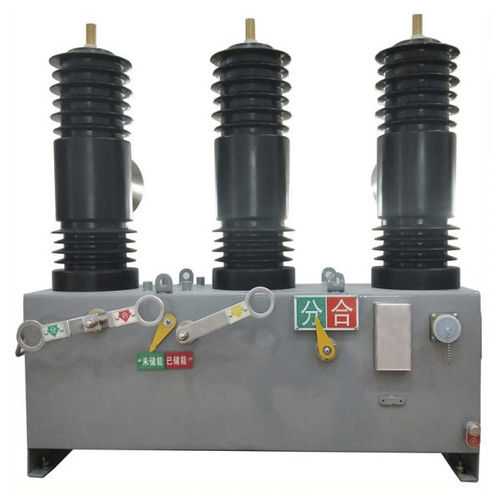

Vaccum capacitor disconnector FCS

industrialIEC

++++General The Farady’s new generation FCS capacitor switch is a long mechnical life design vacuum switch that provides an operational life of over 100,000 (30,000open/close) maintenance-free operations. Using the FCS will result in substantial savings from reduced maintenance and maximized bank uptime and will also improve Power Quality. The FCS all comply with relative standard ANSI C37.66/IEC60071 ++++Service condition Ambient temperature: -40℃~+85℃, day temperature difference: 25℃； Altitude:Below 2000m(special condition pls contact Farady Technical); Wind speed no exceeds 35m/s; No normally intensity vibration No intensity erosion gas, medium place (for example acid, alkali, smother eg.) Pollution class: IV class; Charge temperature -40℃~+85℃。 With optional classes for rated current range: For 15kV, with 630A, Max 50kA making capacity. Normal current 1250A is optional. For 27kV, with 400A, Max 50kA making capacity. Normal current 1250A is optional. For 38kV, with 200A, Max 31kA making capacity only. With optional communication protocols & I/O port for user choice: RS-232 and RS-485 ports supporting. Modbus communication protocol is optional(*need special order) IEC 60870-5-101 communication protocol support. The Capacitor switch can communicate through GPRS(Or GSM) modem with English(need *special order) Note: (*) mean should customized by manufacturer if needed.
