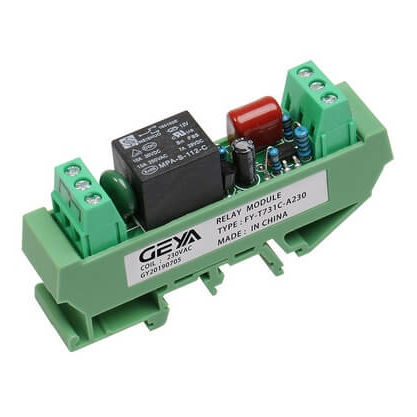

DC relay module FY-T73 1CACswitchingDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- switching, DC, AC
- Mounting
- DIN rail
- Other characteristics
- miniature
- Protection level
- isolated
- Load current
10 A
- Load voltage
30 V, 250 V
Description
Relay Modules are designed for current amplification and isolation protection of output loads. Applicable to PLC, microprocessor systems and time relays, etc, amplifying the control current of outputs, to protect key control systems not being destroyed.
FEATURES
• DIN Rail optional 1/2/4/8/16 channels relay interface modules
• Sub-miniature intermediate power relay, approved TUV, UL, and RoHS compliant.
• Switching current up to 10A at 250VAC or 30VDC
• Input connections by screw terminal block.NPN& PNP in common use, AC&DC in common use
• Relay status indicator LED, surge suppression protection, and overvoltage protection are provided for each relay channel
• DIN Rail mountable for width TS15/28/35
