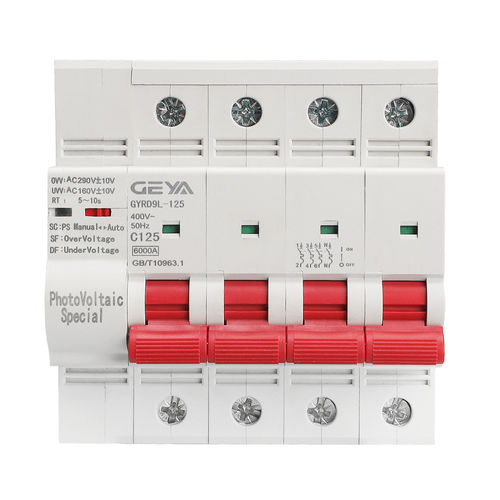

Recloser for photovoltaic applications GYRD9L-125 series thermal-magneticshort-circuitunder-voltage
Add to favorites
Compare this product
Characteristics
- Type
- thermal-magnetic
- Electrical characteristics
- short-circuit, under-voltage, over-voltage, AC, overload
- Operating mode
- automatic
- Applications
- distribution, for photovoltaic applications
- Number of poles
- 2-pole, 4-pole
- Other characteristics
- DIN rail, miniature
- VAC
400 V
- Rating
Max.: 125 A
Min.: 32 A
Description
Gyrd9l-125 series photovoltaic special reclosing miniature circuit breaker is applicable to the line with AC 50Hz, rated working voltage up to 400V, and rated current up to 125A. It has the functions of overvoltage, under-voltage, loss of voltage, overload, and short circuit protection. At present, it is widely used in the photovoltaic distribution boxes. It does not require signal control. It will open and close automatically according to the voltage. It can also be used as ordinary reclosing
Standard: iec60898-1
