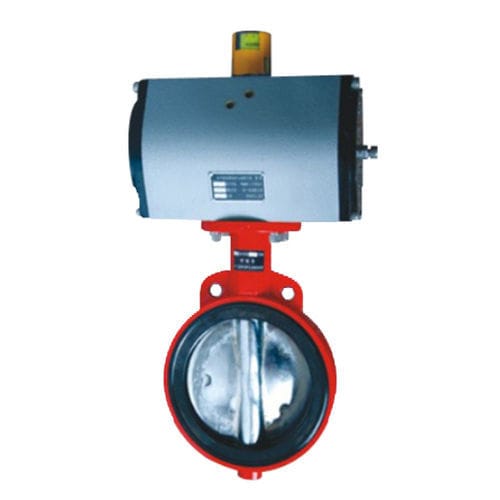

Butterfly valve D671X

pneumaticfor controlsmall

1. Valve sealing pair is made of special formula material, which has the properties of temperature resistance, corrosion resistance and wear resistance. 2. Small and portable, simple structure, easy to disassemble and assemble, suitable for a variety of media, temperature does not exceed 150 C. 3. Good sealing performance. 4. Small operating torque and quick opening. 5. Clear display of switch position. 6. Installation position and angle are not limited. Key Points of Use and Installation 2.3 "and 4" butterfly valves are operated with 80x90, and the square outlet of the output shaft is 12x12mm. 5 "and 6" butterfly valve adopts 125x90 degree head, and the square outlet of output shaft is 16x16mm. 8 "and 10" butterfly valve adopts 160x90 degree head, and the square outlet of the output shaft is 22x22mm. 3. The pneumatic head is equipped with A intake and B intake. When A intake (G1/4") is intake, the butterfly valve opens; B intake (G1/4"); and the intake butterfly valve closes. The intake hose is 10x1mm. 4. The indicated position of the butterfly valve position display must be in accordance with the actual position (on or off) of the butterfly valve. 5. The reserved space for installing butterfly valves is the same as the thickness of butterfly valves. The thickness data of butterfly valves are shown in the attached figure. 6. No additional soft gaskets shall be added between the joint surface of the valve and flange to remove impurities at the pipe orifice so as not to obstruct the Inter-valve switch
