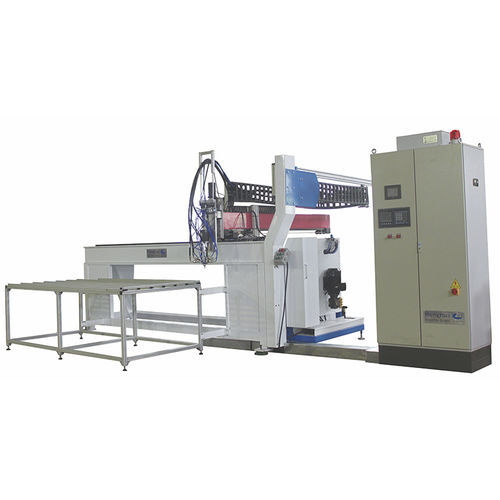

PU foam mixing and metering unit JHT

for the electronics industryfor the automotive industrylow pressure

Polyurethane Foam in Place Gasketing Dosing & Mixing System JHT series 3D Polyurethane Shaping Machine can correspond different application modes to pour miscible liquids into the flat work piece, socket or all kinds of molds, miscible liquids permeate chemical reaction to froth the obturating ring and agglutinate the work piece. Automation scene perfusion vesicant obturating ring is the successional course of production, didn't have the palpable contact point or section and agglutinate with work piece directly, therefore under airproof, damp proof, dustproof, soundproof, insulating, circumstances it also has topgallant performance and conform with the security specifications authentication of UL/CE, shockproof test of MIL-STD-167 or waterproof and dustproof test of EN50298. Use The gland strip of the industrial jack box, lamps and lanterns, the interior and exterior trim in the car and the engine. Products feature Viscosity(25ºC):500-80,000 mPas Mulling ratio: from 15:1 to 1:1 Hardness: shores 7-75A Maximum operating speed 35m/min CNC-acceleration: 5m/s2 Setting accuracy: ±0.05mm Send out: 0.05g/s -100g/s Finish size A1-2,500 x 1,200 x 150mm(X/Y/Z) A1-2,500 x 600 x 150mm(X/Y/Z)
