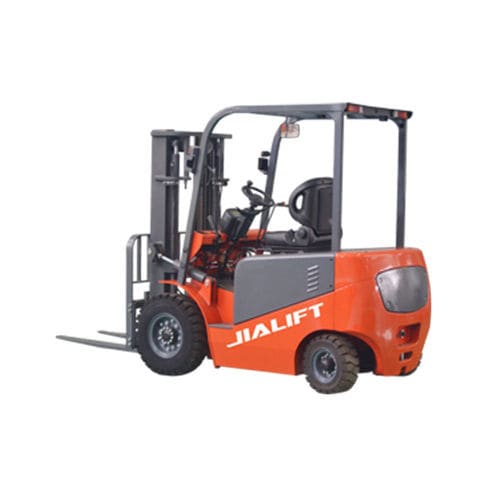

Electric forklift E series
ride-onhandlingcounterbalanced

electric forklift
electric forklift
electric forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
counterbalanced
Carrying capacity

1,600 kg, 1,800 kg, 2,000 kg, 2,500 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb, 5,511.6 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,070 mm, 1,080 mm, 1,194 mm
(42.1 in, 42.5 in, 47 in)

Overall length

3,120 mm, 3,475 mm
(122.8 in, 136.8 in)

Load center distance

500 mm
(19.7 in)

Axle loading with maximum load front

411 kg, 488 kg
(906.1 lb, 1,075.9 lb)

Track width front

890 mm, 973 mm
(35 in, 38.3 in)

Track width rear

920 mm, 950 mm
(36.2 in, 37.4 in)

Height of mast when lowered

1,995 mm, 2,000 mm
(78.5 in, 78.7 in)

Free lift

135 mm
(5.3 in)

Overall height with mast raised

3,815 mm, 3,996 mm
(150.2 in, 157.3 in)

Height to top of overhead guard

2,165 mm, 2,198 mm
(85.2 in, 86.5 in)

Tow couplig height

248 mm, 352 mm
(9.8 in, 13.9 in)

Length to fork face

2,170 mm, 2,405 mm
(85.4 in, 94.7 in)

Fork carriage width

920 mm, 1,040 mm
(36.2 in, 40.9 in)

Ground clearance under mast with load

125 mm, 128 mm
(4.9 in, 5 in)

Turning circle radius

2,080 mm, 2,200 mm
(81.9 in, 86.6 in)

Travel speed

12 km/h, 13 km/h, 15 km/h
(7.5 mph, 8.1 mph, 9.3 mph)

Lifting speed

250 mm/s, 270 mm/s, 350 mm/s, 400 mm/s

Lowering speed

240 mm/s, 258 mm/s, 435 mm/s, 566 mm/s

Gradeability

12 %, 15 %, 16 %

Noise level

70 dB

Description

■ Zero-Emission,Zero-Pollution,Low-Level Vibration,Low-Level Vibration,Low Operation Cost, High Efficiency .High Quality,these are the reasons for you to choose a JIALIFT Electric Forklift. ■ The most advanced 3-phase full AC technology in JIALIFT ’ s electric range combining the Italian ZAPI electric controller,ZAPI-SUPEREC AC motors,and HAKWER battery,as well as the excellent hydraulic system,these features guarantee your material handling become the most cost-efficient. ■ The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.
