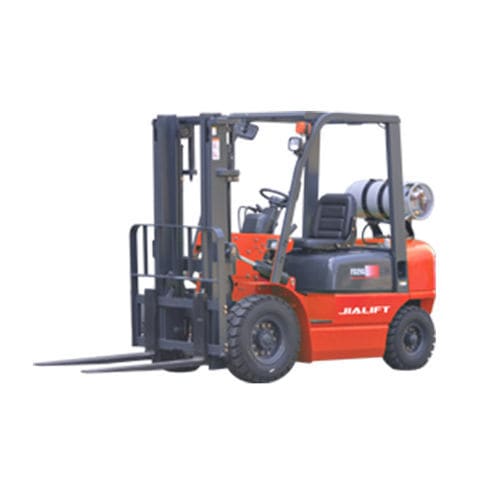

Diesel forklift FD series
LPGride-onhandling

Diesel forklift - FD series - Zhejiang Jialift Warehouse Equipment Co., Ltd - LPG / ride-on / handling
Diesel forklift - FD series - Zhejiang Jialift Warehouse Equipment Co., Ltd - LPG / ride-on / handling
Diesel forklift - FD series - Zhejiang Jialift Warehouse Equipment Co., Ltd - LPG / ride-on / handling - image - 2
Add to favorites
Compare this product


Characteristics

Motor type
diesel, LPG
Operator
ride-on
Applications
handling
Other characteristics
counterbalanced
Carrying capacity

Max.: 10,000 kg
(22,046.2 lb)

Min.: 2,000 kg
(4,409.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,160 mm, 1,230 mm, 1,988 mm, 1,995 mm, 2,245 mm
(45.7 in, 48.4 in, 78.3 in, 78.5 in, 88.4 in)

Overall length

Max.: 4,258 mm
(167.6 in)

Min.: 2,505 mm
(98.6 in)

Load center distance

500 mm, 600 mm
(19.7 in, 23.6 in)

Axle loading with maximum load front

Max.: 5,192 kg
(11,446.4 lb)

Min.: 1,415 kg
(3,119.5 lb)

Axle loading with maximum load rear

Max.: 7,788 kg
(17,169.6 lb)

Min.: 1,340 kg
(2,954.2 lb)

Axle loading without load front

4,740 kg, 5,470 kg, 6,240 kg, 6,983 kg, 8,514 kg
(10,449.9 lb, 12,059.3 lb, 13,756.8 lb, 15,394.9 lb, 18,770.2 lb)

Axle loading without load rear

Max.: 1,298 kg
(2,861.6 lb)

Min.: 660 kg
(1,455.1 lb)

Turning circle radius

Max.: 3,950 mm
(155.5 in)

Min.: 2,170 mm
(85.4 in)

Travel speed

Max.: 26 km/h
(16.2 mph)

Min.: 0 km/h
(0 mph)

Lifting speed

Max.: 500 mm/s

Min.: 0 mm/s

Gradeability

15 %, 18 %, 20 %

Rated output

37 kW, 40 kW, 60 kW, 83 kW
(50.3 hp, 54.4 hp, 81.6 hp, 112.8 hp)

Rated speed

2,200 rpm, 2,650 rpm
(13,823 rad.min-1, 16,650.4 rad.min-1)

Maximum operating pressure

18.5 MPa, 19.5 MPa
(282.8 psi)

Description

Diesel Forklift ■ Available with a range of high performance industrial engine,big torque at low speed.make the whole machine quiet, with less vibration and efficient. Ergonomically design,such as the Long operator assisted grips / two level access entry / Non-slip rubber floor mat / adjustable seat / adjustable tilt steering column,all these provide a comfortable and safe working condition for various operator. ■ High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety.the steering axle provide prompt and precise feedback to the driver when steering. ■ The wide-view mast provide the operator with a wide visibility,improve the efficiency and guarantee the safety. Gasoline LPG Forklift ■ JIALIFT Counterbalanced Gasoline/LPG Forklift choose Japanese imported Nissan System. ■ These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift. ■ High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety.the steering axle provide prompt and precise feedback to the driver when steering. ■ The operator cabin is reasonable-designed considering its space,layout of the steering column and instrument displayer.file storage,suspension seat. ■ The wide-view mast provide the operator with a wide visibility,improve the efficiency and guarantee the safety.
