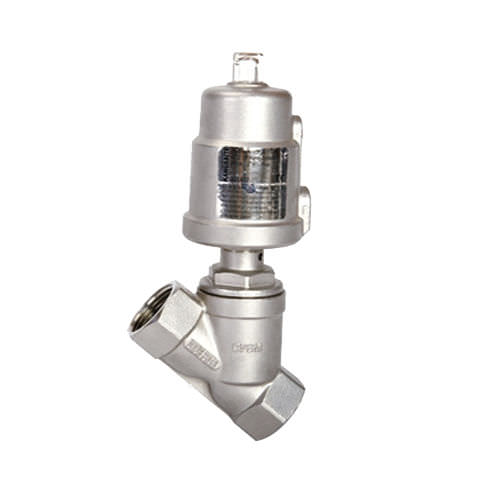

Piston valve J614F-16P/R (SS), DNV, CE

for waterangle seatstainless steel

Zhejiang Kangsaite thread angle seat piston valve has SS head. It is more cost-effective and durable in comparison to the ball valve. It has a compact design and offers quick response. It also eliminates water hammer. These features make it a perfect choice for water fluid operations. It provides 1 million cycles with no leakage. The actuator does not require maintenance. Its opening is shock free. The double-layer packing glands can be self adjusted. It has an expanded spindle guide. Its sealing is dust free. The valve's dimensions range between DN10-DN80, 3/8"-3". The pressure range is between 0-16 bar. The medium temperature ranges between -10℃-+180℃. The ambient temperature range is -10℃-+60℃. The operating pressure range is 3-8 bar. The valve body and actuator are made of CF8/304 and CF8M/316 stainless steel. It has a PTFE sealing. It uses neutral gas, air, water, and vapor as medium. Standard threads include BSP/BSPT/NPT. They are available both as single- and double-acting. They are suitable for use in food and beverage, textile dyeing/bleaching, in sterilizers/auto-claves of hospitals and pharmaceutical sector, laundries, industrial washing, and solvent recovery.
