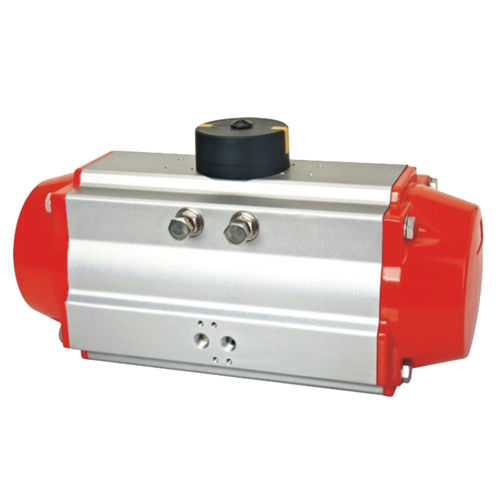

Rotary actuator AT-S, DNV, CE
pneumaticrack-and-piniondouble-acting

Rotary actuator - AT-S, DNV, CE - Zhejiang Kangsaite Valve Co., Ltd. - pneumatic / rack-and-pinion / double-acting

Rotary actuator - AT-S, DNV, CE - Zhejiang Kangsaite Valve Co., Ltd. - pneumatic / rack-and-pinion / double-acting - image - 2

Rotary actuator - AT-S, DNV, CE - Zhejiang Kangsaite Valve Co., Ltd. - pneumatic / rack-and-pinion / double-acting - image - 3

Rotary actuator - AT-S, DNV, CE - Zhejiang Kangsaite Valve Co., Ltd. - pneumatic / rack-and-pinion / double-acting - image - 4

Rotary actuator - AT-S, DNV, CE - Zhejiang Kangsaite Valve Co., Ltd. - pneumatic / rack-and-pinion / double-acting - image - 5

Add to favorites

Compare this product

Characteristics

Movement: rotary
Type: pneumatic
Technology: rack-and-pinion
Configuration: double-acting

Description

Pneumatic Actuator (AT Series) KST Pneumatic Actuator (Double-Acting and Single-Acting) is used to control quarter-turn valves such as ball valve, butterfly valve, etc. I. Front: Air supply connection is designed in accordance with NAMUR Standard to install solenoid valves II. Bottom: Bottom mounting connection is designed in accordance with ISO 5211 / DIN 3337 standards for direct mounting of valve gear boxes or mounting brackets III. Upper: NAMUR drive shaft and NAMUR top mounting connection allow the installation of accessories such as limit switch box and positioners Air Supply Pressure: 3-8bar Type: Double Acting and Spring Return Model: AT32DAT270D, AT50S270S Torque: From 8N.m to 2862N.m (at 5.5 bar) Bottom Mounting Connection: ISO-5211 / Namur Springs can be easily removed from end caps Can be fitted with limit switches, solenoid valves, positioners ±5° stroke adjustment from 0°to 90°
